    MPC-20R2G21R2G-CD-LNF

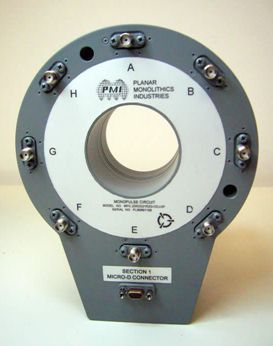

    PMI Model No. MPC-20R2G21R2G-CD-LNFis a Monopulse Circuit designed for beamforming applications. This unit works over the 20.2 to 21.2GHz frequency range.
    Model No. MPC-20R2G21R2G-CD-LNF            PMI Model No. MPC-20R2G21R2G-CD-LNF is a Monopulse Circuit designed for beamforming applications. This unit works over the 20.2 to 21.2GHz frequency range.  Low noise amplifiers are integrated directly onto all eight inputs and an output switch allows the selection of a 0 or 90 degree output.Mechanical Outline Drawing Test Report @ +25 Deg CTest Report @ +71 Deg CTest Report @ -55 Deg C Features: Section 1 Section 2   8 Antenna Inputs   Phase Matched LNAs   Hybrid Tee   Ringline Couplers   Phase Matched Outputs   Hybrid 90 degree Power Divider   Branchline Coupler   SPDT Absorptive Solid State Switch
