    PS-360-3237-8-292FF

    PMI Model No. PS-360-3237-8-292FF is a High Speed, Millimeter Wave, 8-Bit Digitally Controlled, Phase Shifter that operates over the frequency range of 32.0 to 37.0GHz.

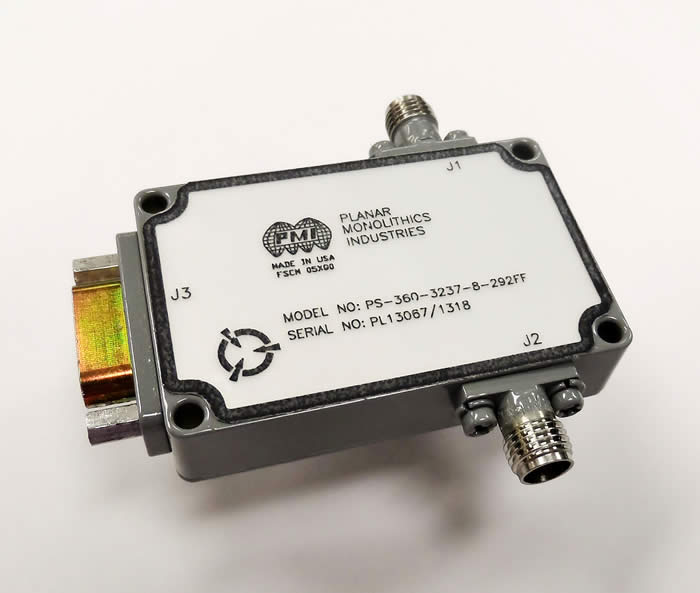

    Model: PS-360-3237-8-292FF   PMI Model No. PS-360-3237-8-292FF is a High Speed, Millimeter Wave, 8-Bit Digitally Controlled, Phase Shifter that operates over the frequency range of 32.0 to 37.0GHz.  This phase shifter offers a low insertion loss of 13dB typically and maintains a VSWR of 1.8:1.  The total phase shift range is 358.593° having a step size of 1.406° and switches between states in less than 500ns.  This model provides a high level of accuracy by offering an amplitude error of ±1.5dB and a phase shift error of ±1.3°.  Ultra-Low DC Current consumption is offered at +15VDC, 20mA and -15VDC, 10mA.  This unit is supplied in a small housing measuring 1.15” x 1.80” x 0.4” with 2.92mm female connectors. Quick Links: (Click on the links below for additional information) Product Feature Test Report Specifications: Frequency 32.0 to 37.0GHz Insertion Loss 13.0dB typ VSWR 2.0:1 typ LSB 1.40625° Control Bits 8 line (TTL Control) Switching Speed 500 nS Maximum Power Supply +15V @ 90mA Maximum -15V @ 60mA Maximum Connectors 2.92mm Female Input & Output Size 1.150" X 1.800" X 0.4" Environmental Ratings: Temperature:  -55ºC to +85 ºC Operating  -65 ºC to +125 ºC Non-Operating  Humidity:  MIL-STD-202F, Method 103B Cond. B  Shock:  MIL-STD-202F, Method 213B Cond. B  Vibration:  MIL-STD-202F, Method 204D Cond. B  Altitude:  MIL-STD-202F, Method 105C Cond. B  Temperature Cycle:  MIL-STD-202F, Method 107D Cond. A
