    SDLVA-3G18G-CW-70-MAH

    PMI Model No: SDLVA-3G18G-CW-70-MAH is a CW-Immune Successive Detection Log Video Amplifier operating in the 2.0 to 18.0GHz frequency band.

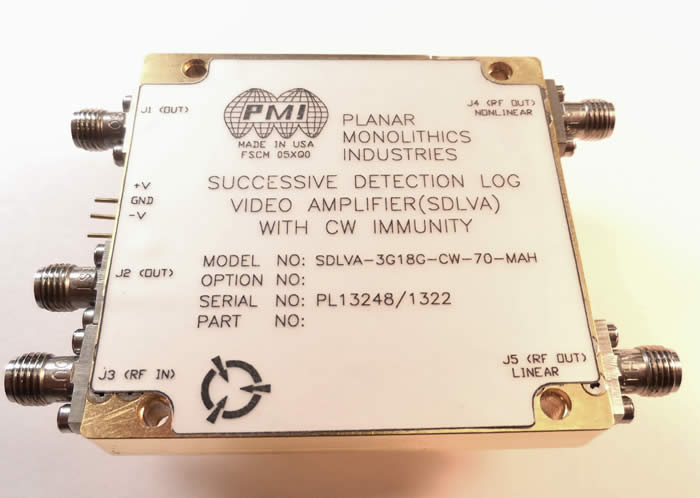

    Model: SDLVA-3G18G-CW-70-MAH         PMI Model No: SDLVA-3G18G-CW-70-MAH is a CW-Immune Successive Detection Log Video Amplifier operating in the 2.0 to 18.0GHz frequency band.  It features an SPST on the RF output which allows for the RF to be blanked when the RF input signal is below the -64dBm threshold.  In addition to RF blanking, a 3.3V TTL-compatible output is also provided for time-gating or sampling to assist in digital system integration.  Quick Links: (click the links below for additional information) Product Feature Test Report Specifications: Frequency Range 2.0 to 18.0GHz Frequency Flatness ±2.0 dB max. TSS -68dBm min., -70dBm typ Limited Output Power 6.5dBm ±3.0dB max. VSWR 2.0:1 max Linear Output Gain 43db ±3.0dB max. Linear Output Psqt 3dBm ±3.0dB max. V0 (Video Comparator Signal Amplitude) 3.3V typ Video Comparator Delay 50ns typ Video Comparator Threshold Level -64dBm ±3.0dB max. V1 (Log Video Signal Amplitude) 1 Volt max Log Slope 10mV/dB into a 50 ohm Load (±1mV) max Log Range -65 to +5dBm min Log Linearity ±1.75dB ( -40ºC to +85 ºC) max Pulse Range 100ns to 250 us Rise Time 35ns max Settling Time to ±1dB 50ns typ Recovery Time 200ns max (150ns typ) CW Immunity Range TSS to -45dBm (1dB degradation) Pulse Considered "CW" 1ms typ Rejection Time 1ms typ Droop 1dB max SPST Isolation 70dB typ SPST Switch Speed 20ns typ Power Supply ±12 VDC to ±15 VDC Connectors SMA Female Finish Gold Size 2.30" x 2.20" x 0.36" Environmental Ratings: Temperature:  -40ºC to +85 ºC Operating  -54 ºC to +100 ºC Non-Operating  Humidity:  MIL-STD-202G, Method 103B Cond. B  Shock:  MIL-STD-202G, Method 213B Cond. B  Vibration:  MIL-STD-202G, Method 204D Cond. B  Altitude:  MIL-STD-202G, Method 105C Cond. B  Temperature Cycle:  MIL-STD-202G, Method 107D Cond. A
