    SDLVA-6G18G-CD-1

    PMI model SDLVA-6G18G-CD-1 Successive Detection Log Video Amplifiers (SDLVA) offers 75dB Dynamic Range over the frequency range of 6.0 to 18.0GHz.

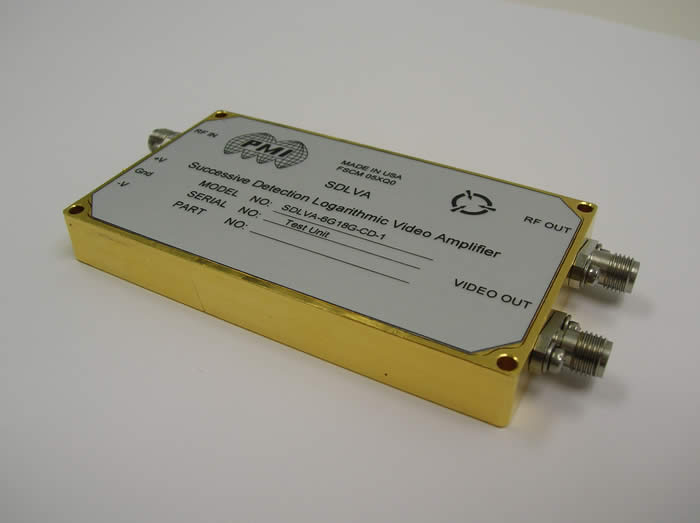

    Model: SDLVA-6G18G-CD-1         PMI model SDLVA-6G18G-CD-1 Successive Detection Log Video Amplifiers (SDLVA) offers 75dB Dynamic Range over the frequency range of 6.0 to 18.0GHz.  This model offers an ultra-fast rise time of 10nsec maximum and a recovery time of less than 60nsec.  The unit is temperature compensated such that log linearity over temperature remains less than +/-2.5dB over the full operating temperature range of -40 to +85C.  This model is supplied in a compact housing measuring only 3.2" x 1.8" x 0.4".  [Optional frequency ranges covering 100MHz to 26.5GHz are available.] Quick Links: (click the links below for additional information) Product Feature Test Report Test Report (With 3-D Graphs) Additional Test Data  Optional RF Output Connected to show typical RF Input versus RF Output Transfer Function Specifications: Frequency Range 6.0GHz to 18.0GHz (100MHz to 26.5GHz available) Frequency Flatness ±2.0 dB max. @ +25C Logging Range -70dBm to +5dBm Log Linearity ±2.0dB Maximum, ±2.5dB Maximum (Over Temp) Log Slope 25mV/dB Nominal (50 Ohm Load) 48mV/dB Nominal (No Load) Pulse Range 30nsec to CW Rise Time 10nsec max., 5nsec typical Recovery Time 60nsec max., 40nsec typical VSWR 2.0:1 typical TSS -70dB min. Input Power Handling +17dBm CW max. Power Plus +12 to +15 vdc @ 350mA typ. Power Minus -12 to -15 vdc @ 180 mA typ. Size 3.2 " x 1.8 " x 0.4" Environmental Ratings: Temperature:  -40ºC to +85 ºC Operating  -65 ºC to +100 ºC Non-Operating  Humidity:  MIL-STD-202F, Method 103B Cond. B  Shock:  MIL-STD-202F, Method 213B Cond. B  Vibration:  MIL-STD-202F, Method 204D Cond. B  Altitude:  MIL-STD-202F, Method 105C Cond. B  Temperature Cycle:  MIL-STD-202F, Method 107D Cond. A
