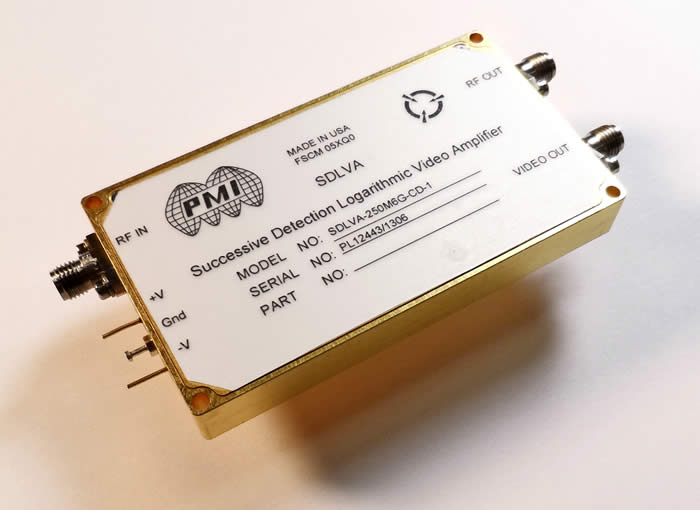

Model: SDLVA-250M6G-CD-1      PMI model SDLVA-250M6G-CD-1 Successive Detection Log Video Amplifiers (SDLVA) offers 70dB Dynamic Range over the frequency range of 0.25 to 6.0GHz.  This model offers an ultra-fast rise time of 10nsec maximum and a recovery time of less than 60nsec.  The unit is temperature compensated such that log linearity over temperature remains less than +/-2.5dB over the full operating temperature range of -40 to +70C.  This model is supplied in a compact housing measuring only 3.2" x 1.8" x 0.4".  [Optional frequency ranges covering 100MHz to 26.5GHz are available.] Quick Links: (click the links below for additional information) Product Feature Test Report   Optional RF Output Connected to show typical RF Input versus RF Output Transfer Function Specifications: Frequency Range 0.25 to 6.0GHz Frequency Flatness ±2.0 dB max. Logging Range -70dBm to 0dBm Log Linearity ±2.5dB max. Log Slope 25mV/dB typ. (±5%) Pulse Range 30nsec to CW Rise Time 10nsec max. Recovery Time 60nsec max. VSWR 2.0:1 max. TSS -73dB typ. Input Power Handling +17dBm CW max. Power Plus +15VDC @ 350mA nominal Power Minus -15VDC @ 180 mA nominal Size 3.2 " x 1.8 " x 0.4" Connectors SMA (F) Finish Gold Plated Size 3.2" x 1.8" x 0.4" Environmental Ratings: Temperature:  -40ºC to +70 ºC Operating  -65 ºC to +125 ºC Non-Operating  Humidity:  MIL-STD-202F, Method 103B Cond. B  Shock:  MIL-STD-202F, Method 213B Cond. B  Vibration:  MIL-STD-202F, Method 204D Cond. B  Altitude:  MIL-STD-202F, Method 105C Cond. B  Temperature Cycle:  MIL-STD-202F, Method 107D Cond. A
